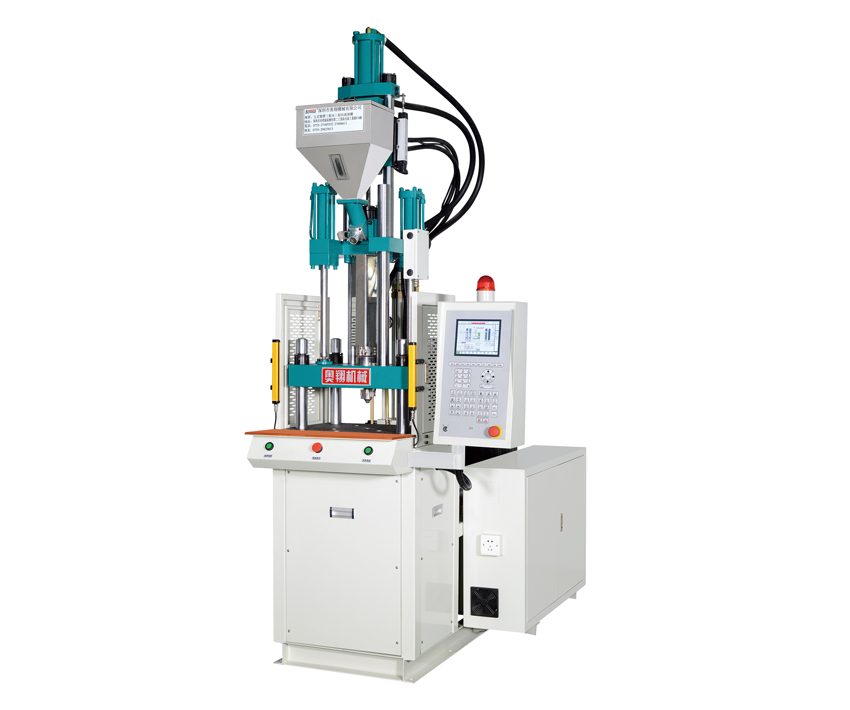

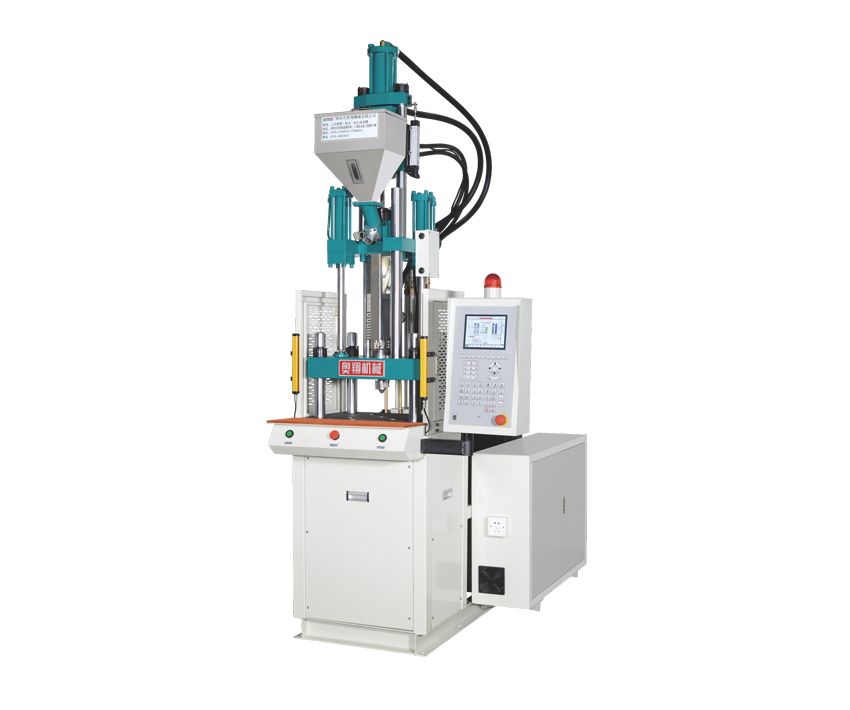

伺服高速机
﹥锁模力：40-120吨。
﹥注射量：21-162克。
﹥最大射出速度可达500mm/s。
﹥0-500mm/s射出响应时间小于0.09秒。
﹥标配耐磨双金属料管组。
﹥标配伺服动力，实际节能40%-70%。
| 项目Items | 单位Unit | A | B | C | ||||||||||
| 射出系统(Injection Unit | 螺杆直径(Screw Diameter) | ㎜ | 18 | 20 | 22 | 25 | 28 | 32 | ||||||
| 射出压力(Maximum Injection Pressure) | ㎏/㎝2 | 2117 | 1715 | 2240 | 1851 | 2163 | 1663 | |||||||
| 理论射出容积(Theoretical Shot Volume) | ㎝3 | 25.3 | 31.4 | 38 | 49 | 73.9 | 95.5 | |||||||
| 射出重量(PS)(Maximum Shot Weight(PS)) | g/oz | 23.3/0.8 | 28.8/1.0 | 35/1.2 | 45/1.6 | 67.9/2.4 | 87.9/3.1 | |||||||
| 电热容量(Barrel Heating Power) | kw | 3.6 | 4.75 | 5.5 | ||||||||||
| 射出速度(Injection Speed) | mm/s | 500 | 500 | 350 | ||||||||||
| 项目Items | AT-400 | AT-400S | AT-400R2 | AT-550 | AT-550S | AT-550R2 | AT-800 | AT-800S | AT-800R2 | AT-1200 | AT-1200S | AT-1200R2 | ||
| 射出单元选项（Injection Unit Option） | A/B | A/B | B/C | B/C | ||||||||||
| 锁模系统(Clamping Unit) | 锁模力(Clamping Force) | ton | 40 | 55 | 80 | 120 | ||||||||
| 最小模厚(Minimum Mold Thickness) | ㎜ | 200(+50) | 230(+50) | 250(+100) | 250(+100) | |||||||||
| 开模行程(Opening Stroke) | ㎜ | 250 | 250 | 270 | 300 | |||||||||
| 最大开模距(Maximum Open Daylight) | ㎜ | 450(+50) | 450(+50) | 520(+100) | 550/650 | |||||||||
| 模柱间距(Space Between Tie-bar) | mm | 410×255 | 440×310 | 510×360 | 600×520 | |||||||||
| 滑板尺寸(Sliding Table Size) | ㎜ | 400×390 | 490×430 | 590×500 | 740×590 | |||||||||
| 圆盘尺寸(Shuttle Table Size) | ㎜ | Ф800 | Ф900 | Ф1000 | Ф1200 | |||||||||
| 顶出力(Ejector Force) | ton | 1.3 | 2.3 | 1.3 | 2.3 | 4.1 | 4.1 | |||||||
| 顶出行程(Ejector Stroke) | ㎜ | 50 | 50 | 70 | 110 | |||||||||
| 其它 (Others) | 电机功率Electric Power | kw | 18.2/25 | 18.2/25 | 25/31 | 25/31 | ||||||||
| 冷却水用量（Cooling Water Capacity） | L/min | 40 | 40 | 60 | 60 | |||||||||
| 机器尺寸(Machine Size (L×W×H min)) | m | 1.8×1.1×2.7 | 1.8×1.1×2.8 | 2.0×1.3×2.85 | 1.9×1.2×2.8 | 2.2×1.2×2.9 | 2.1×1.8×3.0 | 2.1×1.3×3.0 | 2.6×1.3×3.1 | 2.3×1.7×3.2 | 2.7×1.4×3.1 | 3.0×1.4×3.2 | 2.8×1.9×3.3 | |
| 机器重量(Machine Weight (Approx.)) | ton | 1.3 | 1.5 | 1.8 | 2.1 | 2.3 | 2.8 | 2.9 | 3.1 | 3.6 | 4 | 5.2 | 6.1 | |
